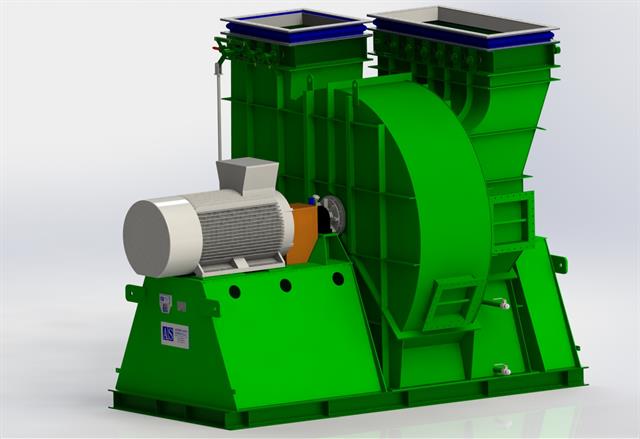

TSAN Series

Centrifugal fans type TSAN are designed for heavy duty industrial applications with medium-high flow rate and where the complete reliability is considered essential.

Usual design conditions are:

  1. volumetric flowrate up to 500.000 m3/h
  2. static pressure up to 1.850 mmH2O
  3. installed power up to 2.000 kW

The TSAN impeller has 8 airfoil blades, welded between a substantial back-plate and a streamlined side-plate. The impeller is arranged to give the highest efficiency.

 Static efficiencies of 82% are obtained and noise levels are kept to a minimum.

The TSAN impeller is best suited for fluid with dusts maximum concentration of 100 mg/Nm3.

 Heavy steel plates for scroll and base construction provide the required rigidity and prevents vibrations.

The fan performance is checked out by testing the fan in accordance with AMCA 210-85 fig.7 and AMCA 210-85 fig.16.

Wheels are statically and dynamically balanced with electronic equipment in accordance with ISO 1940 class 2.5
